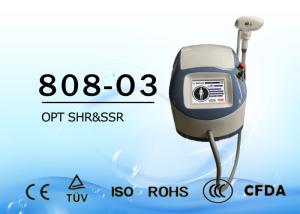

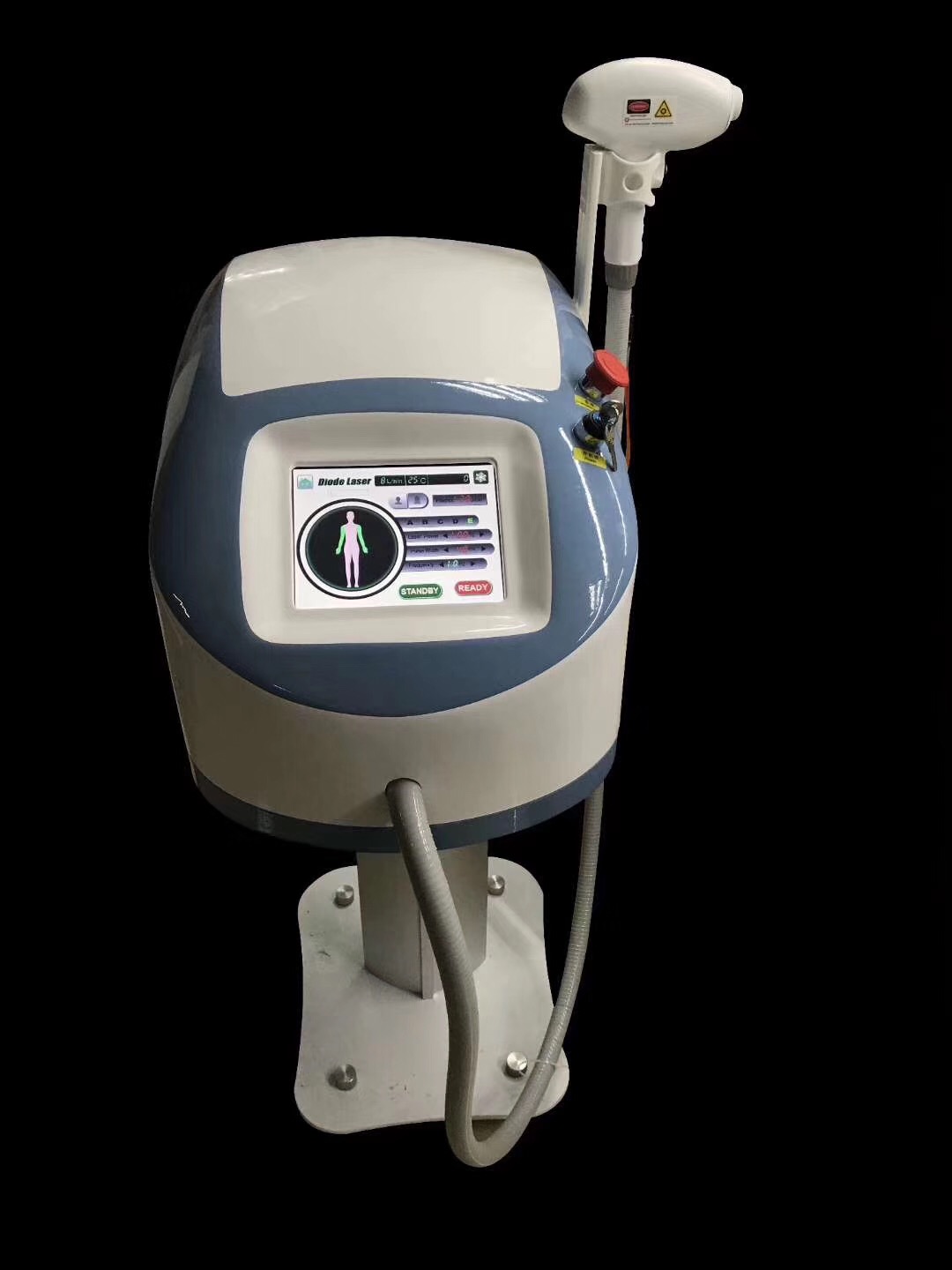

Portable Non channael 808nm Diode laser hair removal machine
No channel 808 diode laser hair removal machine,is a traditional 808nm machine upgrade, a good solution, the traditional machine easy to burn the handle bar, the machine can work for a long time, the output of the energy stronger and effect better.
Treatment priceples:
No channel 808 diode laser hair removal is accomplished when destroying the hair follicular unit by the thermal damage of laser fluency and thus inhibiting future hair regrowth by the follicle. The widely optional pulse duration (50 to 1000ms) of 808 diode laser system can produce thermal damage in hair matrix stem cells and ensure follicular destruction. In order to minimize the uncomfortable of thermal damage to surrounding skin cells, an efficient skin--cooling system ( Sapphire contact cooling tip) is used to chill the skin before, during and after the hair removal treatment. Therefore, 808 diode laser is more effective for hair removal in patients with dark skin.
Technical parameters:
| Description | Professional 450W Non Channel 808nm Diode Laser Hair Removal Machine |
| Laser Wavelength | 808nm |
| Pulse width | 0-600ms |
| Laser Type | Non Channel |
| Handle power | 450W |
| Frequency | 1~10Hz |
| Max energy: | 120J/cm2 |

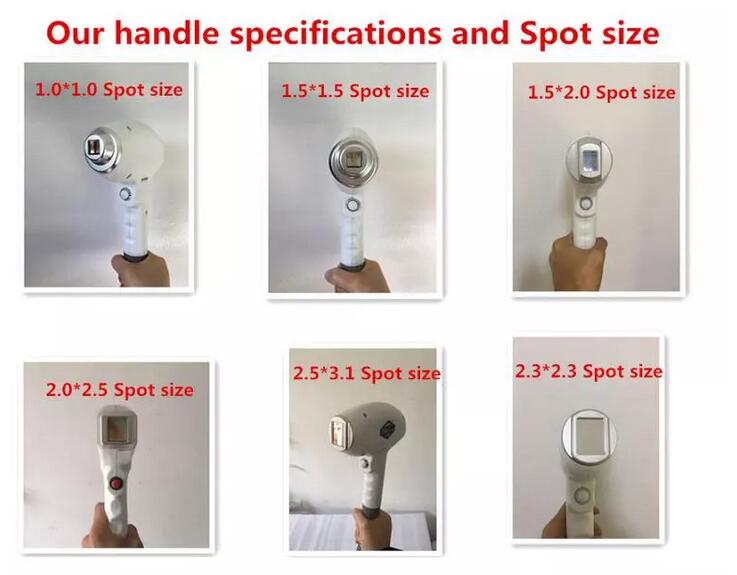

| Spot size: | 15*15mm |
| Cooling system | water cooling system |
| Headpiece cooling temperature: | -4 ~10°C |
| Net Weight: | 25KG |
| Gross Weight: | 40KG |
| Voltage: | AC 220V±10% 50Hz
AC 110V±10% 60Hz |
The difference between of the material
Palladium strip: This is the palladium strip commonly used in microchannels and macrochannels on the market.
This palladium strip is afraid of high temperature, so the microchannel uses a compressor to ensure a constant water temperature.
The macro channel usually puts a cooling fin in the water tank to ensure The laser is cooled, and the temperature control of the
palladium strip is usually 35 degrees, which is very low. Even so, the palladium laser often burns without warning.
Chip: The development of this chip is to solve the problem that the palladium strip is easy to burn. It is relatively high temperature resistant. When we test it in the factory,
the laser that can be packaged has a maximum temperature of 80 degrees. To protect the laser, we The factory-set temperature control is 55 degrees,
which means that as long as the temperature control does not alarm when the machine is working, it can work all the time, no matter how long.This chip never burns a gun,
basically no supplies, no after-sales, so we give the name no channel.Unlike palladium strip package, this kind of laser does not need a compressor to cool, only water and
air cooling is required, the cost is lower, and it is very convenient to clear the goods.
