SR / HR hair removal and tattoo removal SHR Elight hair removal machine

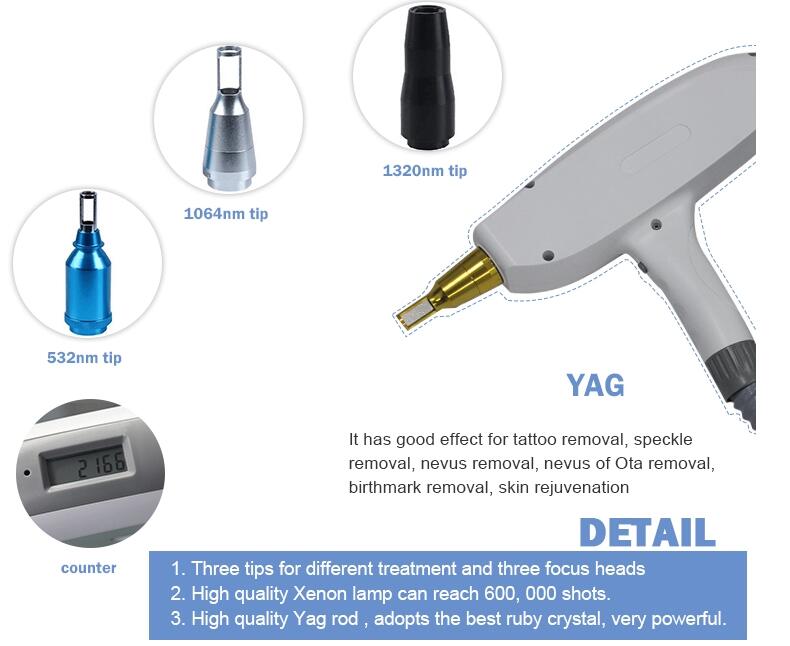

| Wavelength | SHR: 640-950nm Nd:Yag: 1064nm/532nm/1320nm E-light: 430/530/590/640nm |
| Energy density | SHR: 1-50J/cm2 adjustable Nd:Yag: 1-1500mj adjustable E-light: 1-50J/cm2 adjustable |
| Spot size | SHR: 10x40mm or 15x50mm Nd:Yag: 1-8mm adjustable E-light: 10x40mm or 15x50mm |
| Pulse duration | SHR: 1-7ms adjustable YAG Laser: 3.5ns E-light: 1-30ms each pulse adjustable |
| SHR and YAG Shot frequency | 1-10HZ |
| E-light Pulse number | 1-15 adjustable |
| E-light Pulse interval | 1-100ms each adjustable |
| RF | 20Mhz |
| RF density | 1-20J/cm2 adjustable |
| RF duration | 50-2500ms adjustable |
| Display | 10.4' Movable color LCD touch screen |
| Cooling system | Semiconductor+ air + water + cooling gel |
| Skin Cooling | -6°C ~ 0°C |
| Output power | 4500W |
| Voltage | 100~240V 50/60H |
Theory and advantage of SHR technology
SHR=Super Hair Removal, it's a revolutionary technology of hair removal which is having a sweeping success.
In-Motion technology
Sliding the handpiece during treatment, the energy is uniformly distributed to make people feel comfortable and save time.
1. SHR machine is with Single pulse mode can emit energy averagely, however, IPL machines are with multi-pulse mode which focus energy on first pulse, which is very easy to burn patients.
2. SHR filtered violet light and infrared light, which will eradiate and absorb water from target skin. So SHR does not have any side-effect to body.
3. with DEC technology. Identified function makes operation simple, and makes treatment safely!
4. with bigger frequency (from 1 to 5Hz), Which accelerate operation speed and short a lot of time for treatment!
5. with Stationary technology & In-motion technology. Moving IPL can use less time to do treatment on back, leg and arm.

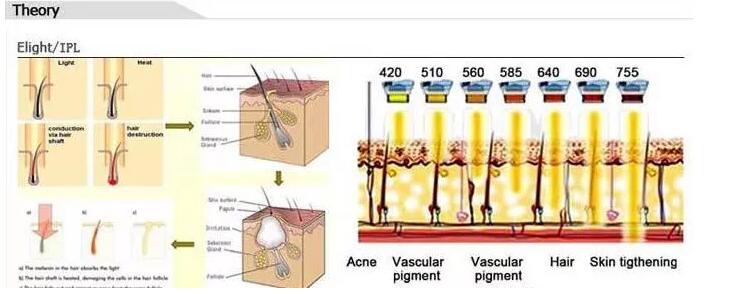

The theory of Elight (IPL + RF)
Advanced technologies: bipolar RF (radio frequency) + IPL(intense pulsed light), can be used together or separately. Perfect treatment results can be expected. The RF energy can penetrate into the dermis layer and directly deliveries to the hair follicle on skin below 8 mm. Integrating with the IPL energy, good treatment result will show you in short time. In addition,
This thermal energy stimulates production of new collagen and re-arrange collagen tissue ,The subsequent heating further tightens the skin tissue and reduces wrinkles . the most importance is that theIPL with contact cooling system inside is effective on the epidermis that greatly reduce the pain during the treatment. The stable performance makes the safety in the whole process

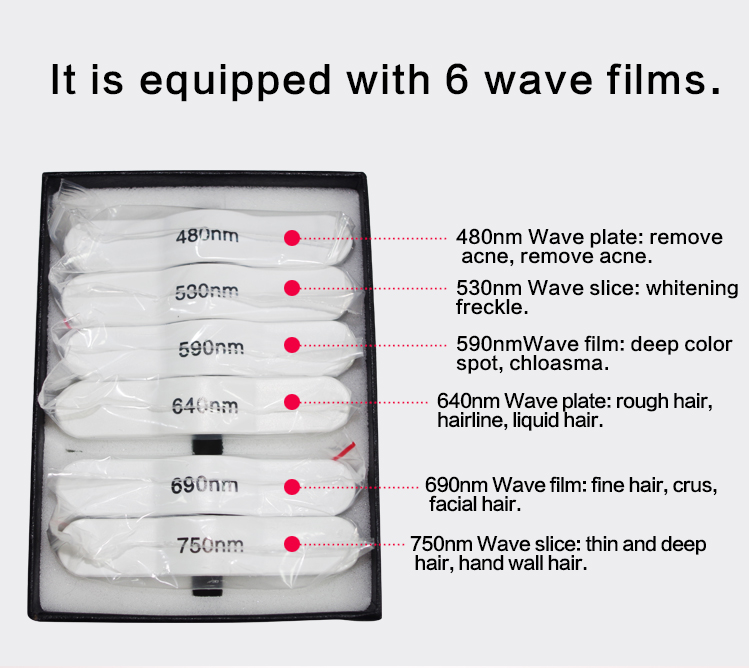

Standard filter include :
690-1200nm: Hair Removal (Skin Type III) and Breast enhance
640-1200nm: Hair Removal (Skin Type I,II,III,IV) ; Wrinkle Removal
590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
480-1200nm: Light Pigmentation, Acne
610-950nm : SHR fast hair removal
Extra filter for your option
430-1200nm: Acne
560-1200nm: Vascular and Pigmented Lesions; Skin Rejuvenation
750-1200nm: Hair Removal (Skin Type VI)
